BT Mobile POS M88
Label: BT Mobile POS M88
Specification: M88 Spec V1.pdf
Description:

Phone ios and Android system Handheld payment terminal

Product Information

M88 Series



●  32-bit ARM Cortex M0 processor with low power consumption&high performance



●  128*64 LCD for Chinese/English text and graphic display



●  ISO7816, EMV2000, PBOC compliance



●  BT2.1+EDR and BLE support



●  Support 3DES encryption



●  2 LEDs and Buzzer indicators



● 16 keys pad



●  Very compact size

Product Description

Item

Description

 IC Card standard

 ISO7816, EMV2000, PBOC 2.0

 Magnetic card standard

 ISO7810 ~ ISO7813 compliance

 Key Pad

 1.Main Key: 14 keys (0~9, Enter, Cancel, Clear, Power)
 2.Function Key: 2 keys (F1& F2)
 3.Material: High quality silica gel
 4.Life:Ultra-long life 500K presses
 5.Long-wearing printing

 SAM Card

 PSAM Card:Built-in 1 SAM slot, for data encryption

 I/O

 1.Light: 2 LEDs indicator power, transaction and system status
 2.Sound: 1 Buzzer

 Processor

 32-bit ARM Cortex M0 processor with low power consumption

 & high performance

 Rechargeable Li-Ion Battery

 Li‐Ion battery: 3.7V 120mAH
 Standby Time: 30 days with a full charge

 Interface

 1.Mini-USB, USB 2.0 HID

 2.Bluetooth, BT2.1+EDR and BLE

 3.Audio L/R/G/M

 Operating System

 & SDK support

 iOS, Android, Windows

 Dimension

 90 x 55 x 19 mm

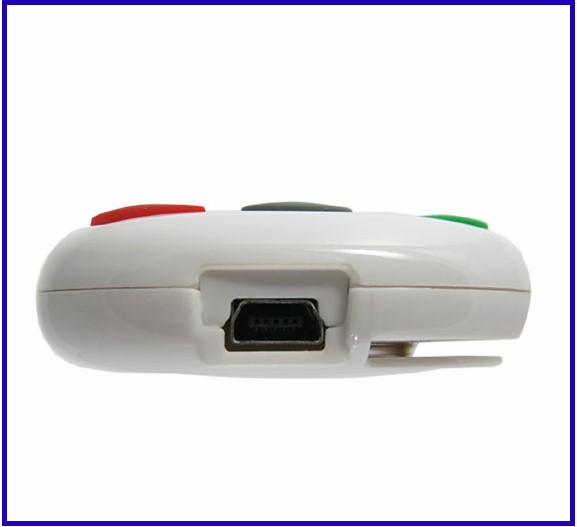

Detailed Images

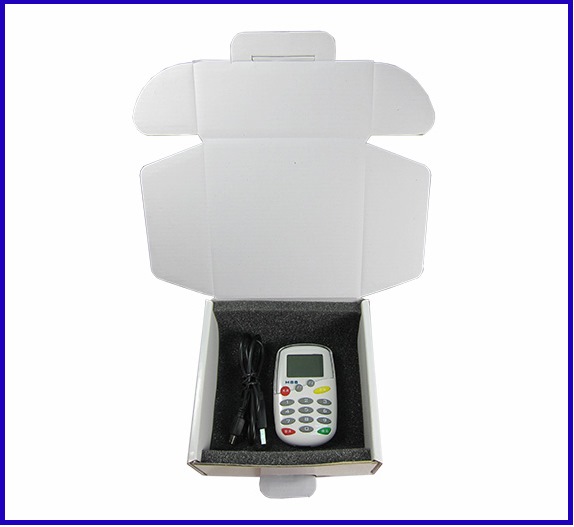

Packing & Delivery
