BT IC Reader MR5-SM
Label: BT IC Reader MR5-SM
Specification: MR5 Spec V1.3.pdf
Description:

Bluetooth IC Reader

Product Information

MR5-SM



●  Contact cards: ISO7816 compliance



●  Contactless cards: ISO14443 Type A compliance



●  Bluetooth & Micro-USB interface



●  Micro-USB socket for rechargeable Li-Ion battery



●  Low battery and charger indicator



●  Multi LED indicator

Product Description

Item

Description

 Contact Smart cards
 Contact Mini-SIM cards

 ISO7816 T=0 and T=1, support Class A/B/C
 Compliant EMV L1, PBOC L1

 Life time of Smart Card adaptor

 Approx. 100,000 times of insertion

 Life time of SIM Card adaptor

 Approx. 5,000 times of insertion

 Input voltage

 5V DC, 500mA

 Power consumption

 Standby current 30mA
 Operating current 70mA max.

 Rechargeable Li-Ion Battery

 3.7V / 160mAh, 1 hours per charge;
 Support 150 minutes continuous used

 Interface

 Bluetooth 4.0 LE

 Micro-USB 2.0 HID Mode

 Operating System & SDK support

 iOS & Android (BLE)

 Operating Temperature

 0 ~ 40°c (32 ~ 104 °F)

 Dimension (mm)

 95 x 60 x 9.5 mm

 Net Weight

 40g

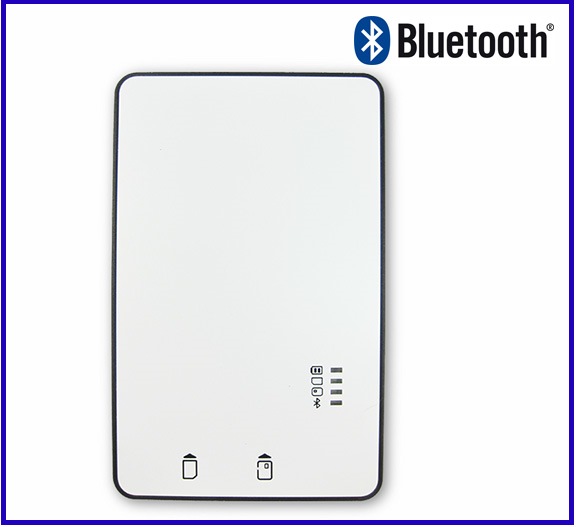

Detailed Images









●  Contact cards: ISO7816 compliance



●  Contactless cards: ISO14443 Type A compliance



●  Bluetooth & Micro-USB interface



●  Micro-USB socket for rechargeable Li-Ion battery



●  Low battery and charger indicator



●  Multi LED indicator

Product Description

Item

Description

 Contact Smart cards
 Contact Mini-SIM cards

 ISO7816 T=0 and T=1, support Class A/B/C
 Compliant EMV L1, PBOC L1

 Contactless cards

 ISO14443 Type A, MIFARE Cards
 Operating frequency: 13.56MHz
 Operating Distance: 0 ~ 30mm

 Life time of Smart Card adaptor

 Approx. 100,000 times of insertion

 Life time of SIM Card adaptor

 Approx. 5,000 times of insertion

 Input voltage

 5V DC, 500mA

 Power consumption

 Standby current 30mA
 Operating current 70mA max.

 Rechargeable Li-Ion Battery

 3.7V / 160mAh, 1 hours per charge;
 Support 150 minutes continuous used

 Interface

 Bluetooth 4.0 LE

 Micro-USB 2.0 HID Mode

 Operating System & SDK support

 iOS & Android (BLE)

 Operating Temperature

 0 ~ 40°c (32 ~ 104 °F)

 Dimension (mm)

 95 x 60 x 9.5 mm

 Net Weight

 40g

●  Contact cards: ISO7816 compliance



●  Contactless cards: ISO14443 Type A compliance



●  Bluetooth & Micro-USB interface



●  Micro-USB socket for rechargeable Li-Ion battery



●  Low battery and charger indicator



●  Multi LED indicator

Product Description

Item

Description

 Contact Smart cards
 Contact Mini-SIM cards

 ISO7816 T=0 and T=1, support Class A/B/C
 Compliant EMV L1, PBOC L1

 Contactless cards

 ISO14443 Type A, MIFARE Cards
 Operating frequency: 13.56MHz
 Operating Distance: 0 ~ 30mm

 Life time of Smart Card adaptor

 Approx. 100,000 times of insertion

 Life time of SIM Card adaptor

 Approx. 5,000 times of insertion

 Input voltage

 5V DC, 500mA

 Power consumption

 Standby current 30mA
 Operating current 70mA max.

 Rechargeable Li-Ion Battery

 3.7V / 160mAh, 1 hours per charge;
 Support 150 minutes continuous used

 Interface

 Bluetooth 4.0 LE

 Micro-USB 2.0 HID Mode

 Operating System & SDK support

 iOS & Android (BLE)

 Operating Temperature

 0 ~ 40°c (32 ~ 104 °F)

 Dimension (mm)

 95 x 60 x 9.5 mm

 Net Weight

 40g

●  Contact cards: ISO7816 compliance



●  Contactless cards: ISO14443 Type A compliance



●  Bluetooth & Micro-USB interface



●  Micro-USB socket for rechargeable Li-Ion battery



●  Low battery and charger indicator



●  Multi LED indicator

Product Description

Item

Description

 Contact Smart cards
 Contact Mini-SIM cards

 ISO7816 T=0 and T=1, support Class A/B/C
 Compliant EMV L1, PBOC L1

 Contactless cards

 ISO14443 Type A, MIFARE Cards
 Operating frequency: 13.56MHz
 Operating Distance: 0 ~ 30mm

 Life time of Smart Card adaptor

 Approx. 100,000 times of insertion

 Life time of SIM Card adaptor

 Approx. 5,000 times of insertion

 Input voltage

 5V DC, 500mA

 Power consumption

 Standby current 30mA
 Operating current 70mA max.

 Rechargeable Li-Ion Battery

 3.7V / 160mAh, 1 hours per charge;
 Support 150 minutes continuous used

 Interface

 Bluetooth 4.0 LE

 Micro-USB 2.0 HID Mode

 Operating System & SDK support

 iOS & Android (BLE)

 Operating Temperature

 0 ~ 40°c (32 ~ 104 °F)

 Dimension (mm)

 95 x 60 x 9.5 mm

 Net Weight

 40g

●  Contact cards: ISO7816 compliance



●  Contactless cards: ISO14443 Type A compliance



●  Bluetooth & Micro-USB interface



●  Micro-USB socket for rechargeable Li-Ion battery



●  Low battery and charger indicator



●  Multi LED indicator

Product Description

Item

Description

 Contact Smart cards
 Contact Mini-SIM cards

 ISO7816 T=0 and T=1, support Class A/B/C
 Compliant EMV L1, PBOC L1

 Contactless cards

 ISO14443 Type A, MIFARE Cards
 Operating frequency: 13.56MHz
 Operating Distance: 0 ~ 30mm

 Life time of Smart Card adaptor

 Approx. 100,000 times of insertion

 Life time of SIM Card adaptor

 Approx. 5,000 times of insertion

 Input voltage

 5V DC, 500mA

 Power consumption

 Standby current 30mA
 Operating current 70mA max.

 Rechargeable Li-Ion Battery

 3.7V / 160mAh, 1 hours per charge;
 Support 150 minutes continuous used

 Interface

 Bluetooth 4.0 LE

 Micro-USB 2.0 HID Mode

 Operating System & SDK support

 iOS & Android (BLE)

 Operating Temperature

 0 ~ 40°c (32 ~ 104 °F)

 Dimension (mm)

 95 x 60 x 9.5 mm

 Net Weight

 40g

●  Contact cards: ISO7816 compliance



●  Contactless cards: ISO14443 Type A compliance



●  Bluetooth & Micro-USB interface



●  Micro-USB socket for rechargeable Li-Ion battery



●  Low battery and charger indicator



●  Multi LED indicator

Product Description

Item

Description

 Contact Smart cards
 Contact Mini-SIM cards

 ISO7816 T=0 and T=1, support Class A/B/C
 Compliant EMV L1, PBOC L1

 Contactless cards

 ISO14443 Type A, MIFARE Cards
 Operating frequency: 13.56MHz
 Operating Distance: 0 ~ 30mm

 Life time of Smart Card adaptor

 Approx. 100,000 times of insertion

 Life time of SIM Card adaptor

 Approx. 5,000 times of insertion

 Input voltage

 5V DC, 500mA

 Power consumption

 Standby current 30mA
 Operating current 70mA max.

 Rechargeable Li-Ion Battery

 3.7V / 160mAh, 1 hours per charge;
 Support 150 minutes continuous used

 Interface

 Bluetooth 4.0 LE

 Micro-USB 2.0 HID Mode

 Operating System & SDK support

 iOS & Android (BLE)

 Operating Temperature

 0 ~ 40°c (32 ~ 104 °F)

 Dimension (mm)

 95 x 60 x 9.5 mm

 Net Weight

 40g

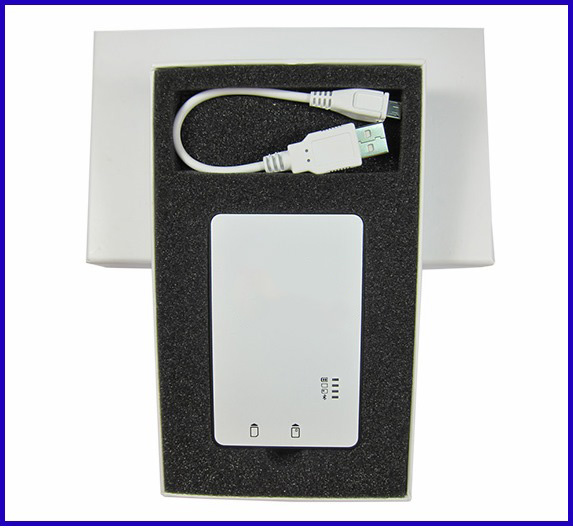

Packing & Delivery
