Mobile Payment
Details
| Label: | MP506SE Mobile Payment |
|---|---|
| Specification: | MP506 SE Spec V1.0.pdf |
| Description: | Bluetooth Smart & Magnetic Card reader, for Android & iOS system, without certification. |
Product Information
MP506 SE Series
● ISO 7810 ~ 7813 triple-track compliance
● ISO7816 compliance
● EMV Contact L1 and L2 compliant
● Support 3DES encryption and DUKPT key management
● Bluetooth and USB interface
● Micro-USB port for charging and PC communication
● With LEDs indicator
● Compact size 40 x 60 x 14.4 mm
Version List
| Model Name | Bluetooth | PIN Pad | |
|---|---|---|---|
| MP506SE-33 | ● | ─ | |
Product Description
|
Item |
Description |
|
Smart card standard |
ISO7816 T=0/T=1, EMV2000 L1/L2, PBOC3.0 L1/L2 |
|
Magnetic card standard |
ISO7810~7813 triple-track conformance |
|
Encryption |
DUKPT, 3DES, CBC mode |
|
Life time of ICC adaptor |
Approx. 100,000 times of insertion |
|
Life time of Magnetic head |
Approx. 500,000 times |
|
Power supply |
Operating 3.3V DC, MAX. 35mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge. Support 500 times of usage if 30 seconds per transaction |
|
Interface |
1. Bluetooth 4.0 LE 2. Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS, Android (BLE) |
|
Dimension |
40 x 60 x 14.3 mm |

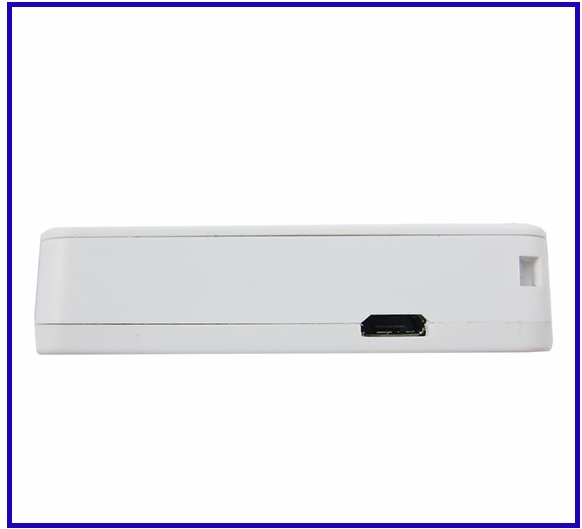

Detailed Images
Packing & Delivery
