| Label: | IC Card Reader |
|---|---|
| Specification: | MR5 Spec V1.3.pdf |
| Description: | Bluetooth IC Card Reader |
Product Information
MR5SE-SM Series
● Contact cards: ISO7816 compliance
● Contactless cards: ISO14443 Type A compliance
● Bluetooth & Micro-USB interface
● Micro-USB socket for rechargeable Li-Ion battery
● Low battery and charger indicator
|
Item |
Description |
|
Contact Smart cards |
ISO7816 T=0 and T=1, support Class A/B/C |
|
Life time of Smart Card adaptor |
Approx. 100,000 times of insertion |
|
Life time of SIM Card adaptor |
Approx. 5,000 times of insertion |
|
Input voltage |
5V DC, 500mA |
|
Power consumption |
Standby current 30mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge; |
|
Interface |
Bluetooth 4.0 LE Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS & Android (BLE) |
|
Operating Temperature |
0 ~ 40°c (32 ~ 104 °F) |
|
Dimension (mm) |
95 x 60 x 9.5 mm |
|
Net Weight |
40g |

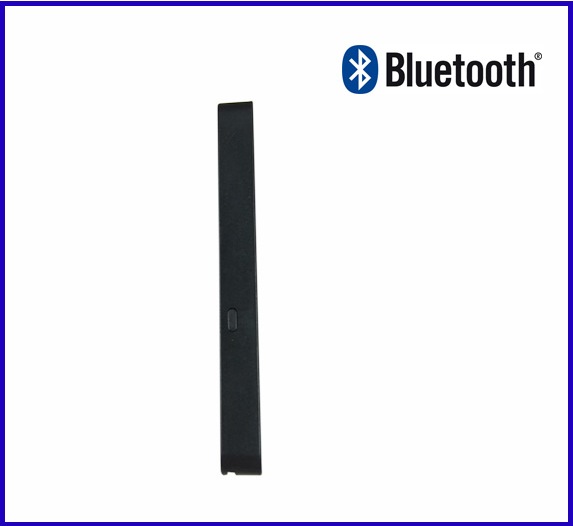

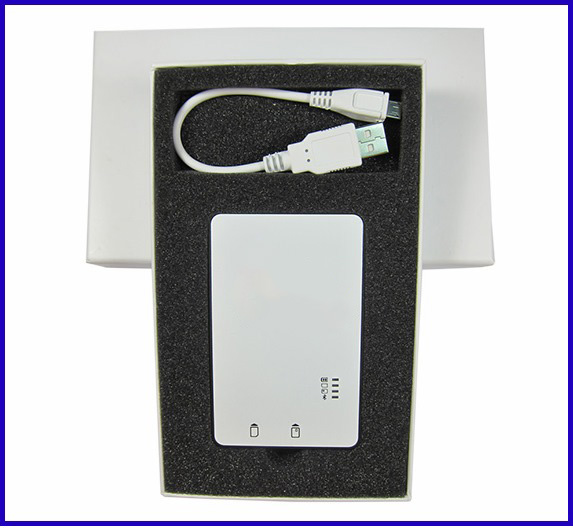

Detailed Images
.jpg)
● Contact cards: ISO7816 compliance
● Contactless cards: ISO14443 Type A compliance
● Bluetooth & Micro-USB interface
● Micro-USB socket for rechargeable Li-Ion battery
● Low battery and charger indicator
|
Item |
Description |
|
Contact Smart cards |
ISO7816 T=0 and T=1, support Class A/B/C |
|
Contactless cards |
ISO14443 Type A, MIFARE Cards |
|
Life time of Smart Card adaptor |
Approx. 100,000 times of insertion |
|
Life time of SIM Card adaptor |
Approx. 5,000 times of insertion |
|
Input voltage |
5V DC, 500mA |
|
Power consumption |
Standby current 30mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge; |
|
Interface |
Bluetooth 4.0 LE Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS & Android (BLE) |
|
Operating Temperature |
0 ~ 40°c (32 ~ 104 °F) |
|
Dimension (mm) |
95 x 60 x 9.5 mm |
|
Net Weight |
40g |
● Contact cards: ISO7816 compliance
● Contactless cards: ISO14443 Type A compliance
● Bluetooth & Micro-USB interface
● Micro-USB socket for rechargeable Li-Ion battery
● Low battery and charger indicator
|
Item |
Description |
|
Contact Smart cards |
ISO7816 T=0 and T=1, support Class A/B/C |
|
Contactless cards |
ISO14443 Type A, MIFARE Cards |
|
Life time of Smart Card adaptor |
Approx. 100,000 times of insertion |
|
Life time of SIM Card adaptor |
Approx. 5,000 times of insertion |
|
Input voltage |
5V DC, 500mA |
|
Power consumption |
Standby current 30mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge; |
|
Interface |
Bluetooth 4.0 LE Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS & Android (BLE) |
|
Operating Temperature |
0 ~ 40°c (32 ~ 104 °F) |
|
Dimension (mm) |
95 x 60 x 9.5 mm |
|
Net Weight |
40g |
● Contact cards: ISO7816 compliance
● Contactless cards: ISO14443 Type A compliance
● Bluetooth & Micro-USB interface
● Micro-USB socket for rechargeable Li-Ion battery
● Low battery and charger indicator
|
Item |
Description |
|
Contact Smart cards |
ISO7816 T=0 and T=1, support Class A/B/C |
|
Contactless cards |
ISO14443 Type A, MIFARE Cards |
|
Life time of Smart Card adaptor |
Approx. 100,000 times of insertion |
|
Life time of SIM Card adaptor |
Approx. 5,000 times of insertion |
|
Input voltage |
5V DC, 500mA |
|
Power consumption |
Standby current 30mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge; |
|
Interface |
Bluetooth 4.0 LE Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS & Android (BLE) |
|
Operating Temperature |
0 ~ 40°c (32 ~ 104 °F) |
|
Dimension (mm) |
95 x 60 x 9.5 mm |
|
Net Weight |
40g |
● Contact cards: ISO7816 compliance
● Contactless cards: ISO14443 Type A compliance
● Bluetooth & Micro-USB interface
● Micro-USB socket for rechargeable Li-Ion battery
● Low battery and charger indicator
|
Item |
Description |
|
Contact Smart cards |
ISO7816 T=0 and T=1, support Class A/B/C |
|
Contactless cards |
ISO14443 Type A, MIFARE Cards |
|
Life time of Smart Card adaptor |
Approx. 100,000 times of insertion |
|
Life time of SIM Card adaptor |
Approx. 5,000 times of insertion |
|
Input voltage |
5V DC, 500mA |
|
Power consumption |
Standby current 30mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge; |
|
Interface |
Bluetooth 4.0 LE Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS & Android (BLE) |
|
Operating Temperature |
0 ~ 40°c (32 ~ 104 °F) |
|
Dimension (mm) |
95 x 60 x 9.5 mm |
|
Net Weight |
40g |
● Contact cards: ISO7816 compliance
● Contactless cards: ISO14443 Type A compliance
● Bluetooth & Micro-USB interface
● Micro-USB socket for rechargeable Li-Ion battery
● Low battery and charger indicator
|
Item |
Description |
|
Contact Smart cards |
ISO7816 T=0 and T=1, support Class A/B/C |
|
Contactless cards |
ISO14443 Type A, MIFARE Cards |
|
Life time of Smart Card adaptor |
Approx. 100,000 times of insertion |
|
Life time of SIM Card adaptor |
Approx. 5,000 times of insertion |
|
Input voltage |
5V DC, 500mA |
|
Power consumption |
Standby current 30mA |
|
Rechargeable Li-Ion Battery |
3.7V / 160mAh, 1 hours per charge; |
|
Interface |
Bluetooth 4.0 LE Micro-USB 2.0 HID Mode |
|
Operating System & SDK support |
iOS & Android (BLE) |
|
Operating Temperature |
0 ~ 40°c (32 ~ 104 °F) |
|
Dimension (mm) |
95 x 60 x 9.5 mm |
|
Net Weight |
40g |
