| Label: | TTL |
|---|---|
| Specification: | ST43A SpecV15.pdf |
| Description: | Manual Swipe Magnetic Card Reader |
Product Information
ST43
● Low power consumption, CMOS for TTL interface
● ISO 7811 conformance
● Data processing rate: 300 ~ 15,000 bps per track
● Widely operating voltage range 3.3V~5.5V
● Reading single, dual or triple track
● Mini size 43 mm
Product Description
|
Item |
Description |
|
Magnetic card standard |
ISO7810~7813 triple‐track conformance |
|
Decoding method |
F/2F |
|
Interface |
TTL |
|
Life time of head |
500,000 time passes |
|
Operation temperature |
-10°c ~ 50°c |
|
Cable length |
15 cm |
|
Dimension (mm) |

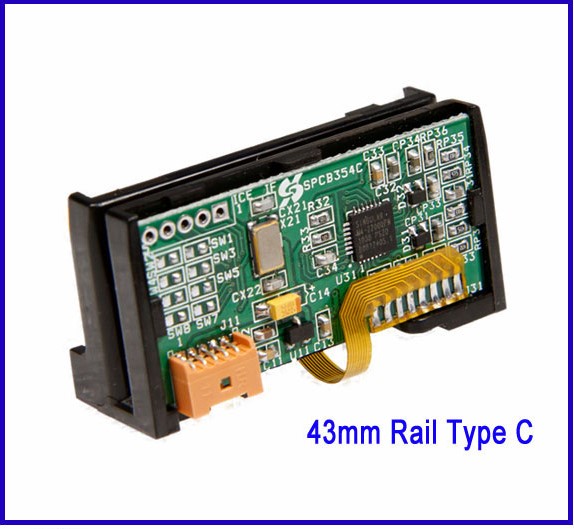

43 mm Rail Type A: 43 x 23 x 22 43 mm Rail Type C: 43 x 16 x 22 |

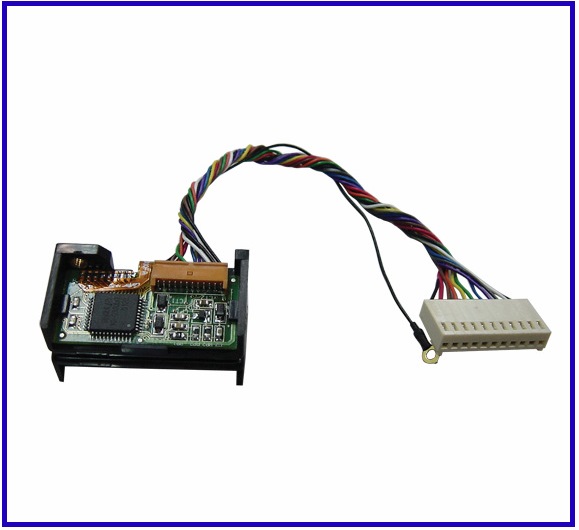

Detailed Image
